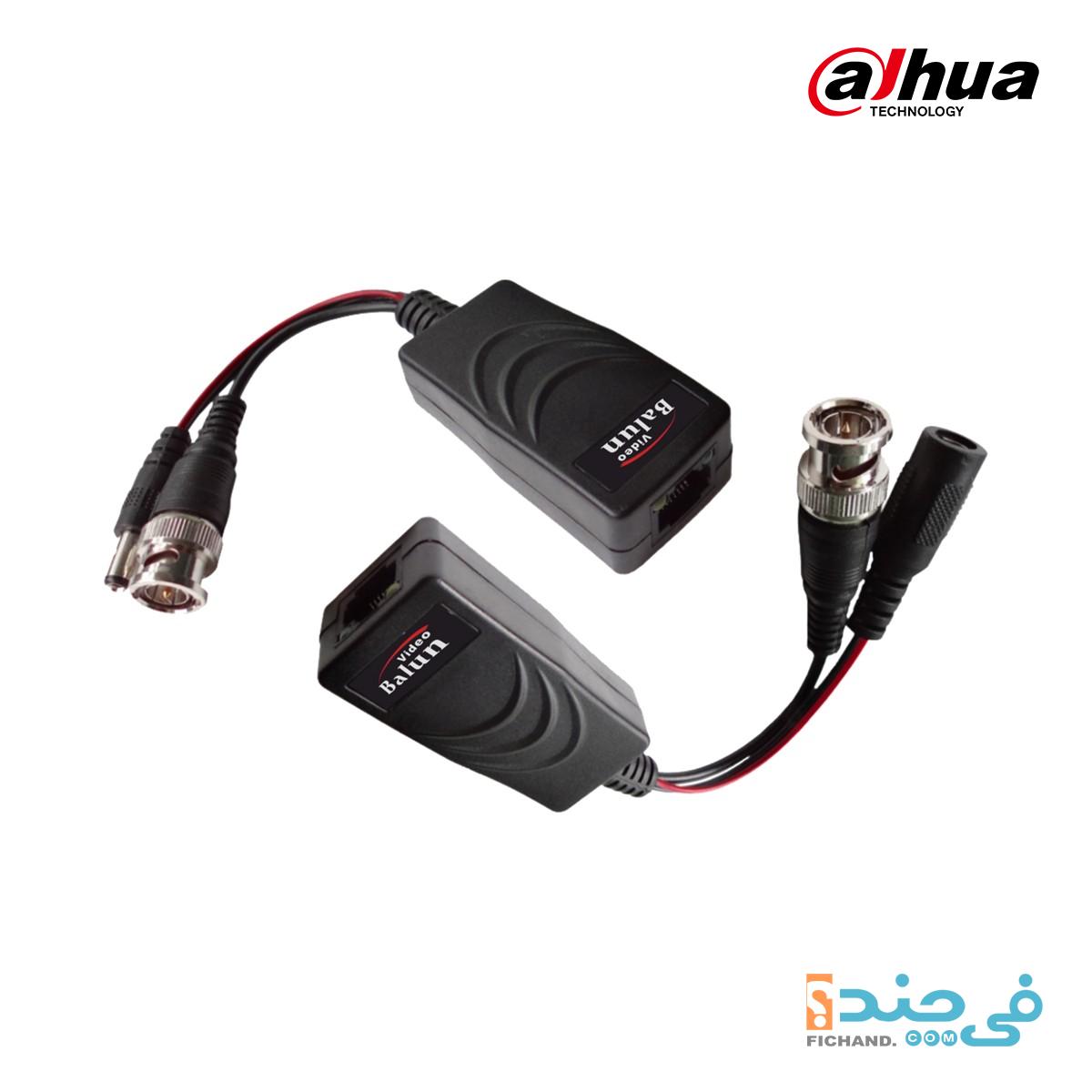

Passive Video Balun with Power
| Technical Specification | |
| Model | PFM802 |
| Properties | |
| منبع تغذیه | DC12-15V |
| نوع Category | UTP CAT5E/6 (conductor material: Cu ) |
| Transmission Properties | Input |
| Using DC12V0.7A تغذیه adapter و CAT5E cable for example | 0-20m |
| 20-40m | 6.2W |
| 40-60m | 4.5W |
| 60-80m | 3.7W |
| 80-100m | 2.9W |
| تصویر Transmission Properties | |
| Coaxial تصویر Connector | BNC-متر |
| Connection Way | RJ45 |
| Compatible Format | HDCVI/TVI/AHD/CVBS |
| رزولیشن | 720P/1080P/4 مگاپیکسل |
| مقاومت | |
| ESD | 1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 | |
| Per: IEC61000-4-2 | |
| Coaxial Cable Connector | 2KV(common-mode), 1KV (different-mode) |
| Per: IEC61000-4-5 | |
| UTP Cable Connector | 2KV(common-mode), 1KV (different-mode) |
| Connector تغذیه | 2KV(common-mode), 1KV (different-mode) |
| Impedance | |
| BNC Male | 75 ohms |
| UTP Cable | 100 ohms |
| Physical Properties | |
| Weight | 85g (0.19lb) |
| Dimension(LxWxH) | 61.5mmx33.5mmx20.5mm (2.42”x1.32“x0.81”) |
| Shell | ABS |
| رنگ | Black |
